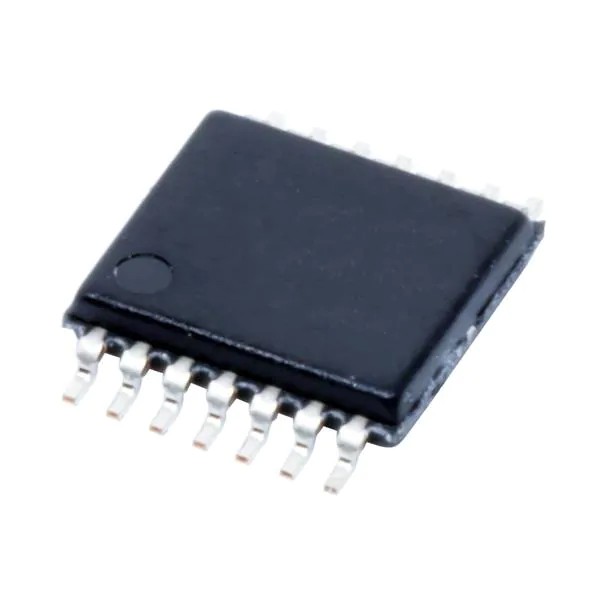

SN74LV132APW
Texas Instruments
SN74LV132APW
0 Reviews
Description
brand:
Texas Instruments
weight:
10.00 g
Number of Input Lines:
2 Input
Logic Function:
NAND
Function:
NAND
Operating Temperature Range:
- 40 C to + 125 C
Propagation Delay Time:
11 ns
Low Level Output Current:
12 mA
Mounting Style:
SMD/SMT
Length:
5 mm
Supply Voltage - Max:
5.5 V
Input Type:
Schmitt Trigger
Brand:
Texas Instruments
Series:
SN74LV132A
Minimum Operating Temperature:
- 40 C
Manufacturer:
Texas Instruments
Subcategory:
Logic ICs
Product Type:
Logic Gates
Package / Case:
TSSOP-14
Maximum Operating Temperature:
+ 125 C
Factory Pack Quantity:
90
Packaging:
Tube
Product Category:
Logic Gates
Operating Supply Voltage:
3.3 V
Width:
4.4 mm
Height:
1.15 mm
Operating Supply Current:
20 uA
Supply Voltage - Min:
2 V
Unit Weight:
0.002018 oz
Product:
Single-Function Gate
Logic Type:
Nand Gates With Schmitt Trigger Inputs
Output Type:
TTL
Number of Gates:
4 Gate
DataSheet:
SN74LV132APW.pdf
Logic Gates Quad Schmitt Trig
